TP-Link Archer A6: OpenWrt Compatibility Report

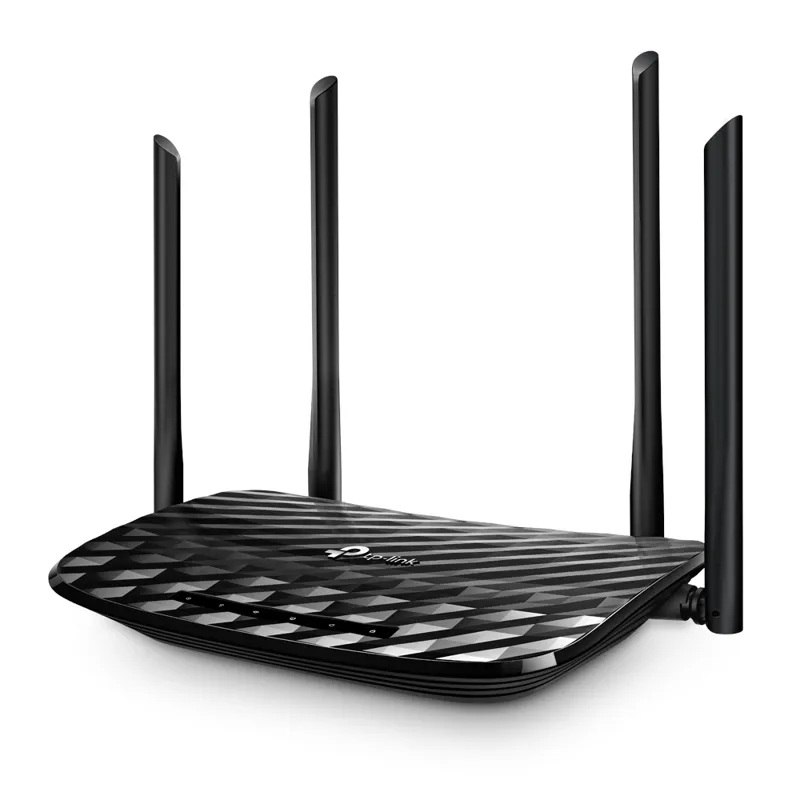

TP-Link Archer A6 router
Image: OpenWrt Table of Hardware, CC BY-SA 4.0

The TP-Link Archer A6 runs OpenWrt 25.12.1 on the ath79/generic target, and has been supported since 21.02.0. Its WiFi 5 (AC) wireless on the ath9k driver rates excellent for open-source driver support (0.85/1.0), installation is rated easy, and it is no longer sold new.

Drivers: Excellent (0.85) WiFi 5 (AC) Install: easy

Hardware data and retail listings last checked .

Discontinued. This model is no longer sold new, so this page is kept as a reference for people who already own one. See current alternatives.

Where to buy

We have no current retail listing for the TP-Link Archer A6, which is no longer sold new. See current alternatives for devices you can still buy today.

Specifications

SoC Qualcomm Atheros QCA9563
CPU 1 core @ 775 MHz
RAM 128 MB
Flash 16 MB
Ethernet ports 5
WiFi generation WiFi 5 (AC)
Radios 2.4GHz: b/g/n · 5GHz: a/n/ac
WLAN hardware Qualcomm Atheros QCA9563, Qualcomm Atheros QCA9886
WLAN driver ath9k, ath10k-ct
OpenWrt target ath79 / generic
Package architecture mips_24kc
Current release 25.12.1
Supported since 21.02.0
Install method GUI OEM, U-Boot TFTP recovery, see git-commit
Install difficulty easy
Power supply 12 VDC, 1.0 A
Device type Home router
Estimated throughput 96 Mbps
Availability discontinued

Installing OpenWrt on the Archer A6

Installation on this device is rated easy. You can flash it from the stock web interface without opening the case or using a serial cable. Documented methods: GUI OEM, U-Boot TFTP recovery, see git-commit.

Be aware installing snapshot requires SSH access.

Official OpenWrt device page for the Archer A6

Flashing third-party firmware can brick a router and usually voids the warranty. Always check that the firmware image matches your exact hardware version.

Hardware versions

The Archer A6 ships in several hardware revisions with different chipsets. Match the version printed on your device label before flashing.

Version Target Current release WLAN hardware
V2/US/TW shown above ath79/generic 25.12.1 Qualcomm Atheros QCA9563, Qualcomm Atheros QCA9886
V2/EU/RU ath79/generic 25.12.1 Qualcomm Atheros QCA9563, Qualcomm Atheros QCA9886
V3 ramips/mt7621 25.12.2 MediaTek MT7603E, MediaTek MT7613BE
