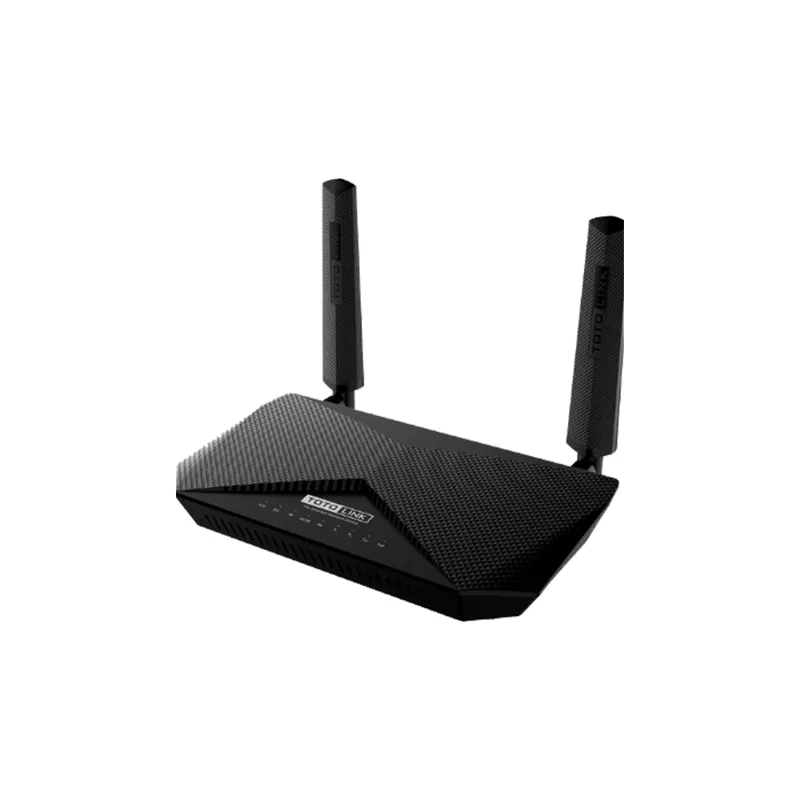

TOTOLINK LR1200: OpenWrt Compatibility Report
The TOTOLINK LR1200 runs OpenWrt 25.12.2 on the ramips/mt76x8 target, and has been supported since 19.07.0. Its WiFi 5 (AC) wireless on the mt76 driver rates fair for open-source driver support (0.65/1.0), installation is rated easy, and we have no current US retail listing for it.
Hardware data and retail listings last checked .
Where to buy
We have no current retail listing for the TOTOLINK LR1200. See current alternatives for devices we already have links for.
Not finding a listing does not mean you cannot buy one. Our retail links come from hand research rather than a live stock feed, so this device may well still be on sale somewhere we have not checked yet.
Specifications
| SoC | MediaTek MT7628DAN |
|---|---|
| CPU | 1 core @ 580 MHz |
| RAM | 64 MB |
| Flash | 8 MB |
| Ethernet ports | 5 |
| WiFi generation | WiFi 5 (AC) |
| Radios | 2.4GHz: b/g/n · 5GHz: a/n/ac |
| WLAN hardware | MediaTek MT7628DAN, MediaTek MT7612E |
| WLAN driver | mt76 |
| OpenWrt target | ramips / mt76x8 |
| Package architecture | mipsel_24kc |
| Current release | 25.12.2 |
| Supported since | 19.07.0 |
| Install method | U-Boot web recovery, see git-commit |
| Install difficulty | easy |
| Power supply | 12V, 1A via barrel plug |
| Device type | Home router |
| Estimated throughput | 72 Mbps |
| Availability | available |
Installing OpenWrt on the LR1200
Installation on this device is rated easy. You can flash it from the stock web interface without opening the case or using a serial cable. Documented methods: U-Boot web recovery, see git-commit.
Flashing third-party firmware can brick a router and usually voids the warranty. Always check that the firmware image matches your exact hardware version.
