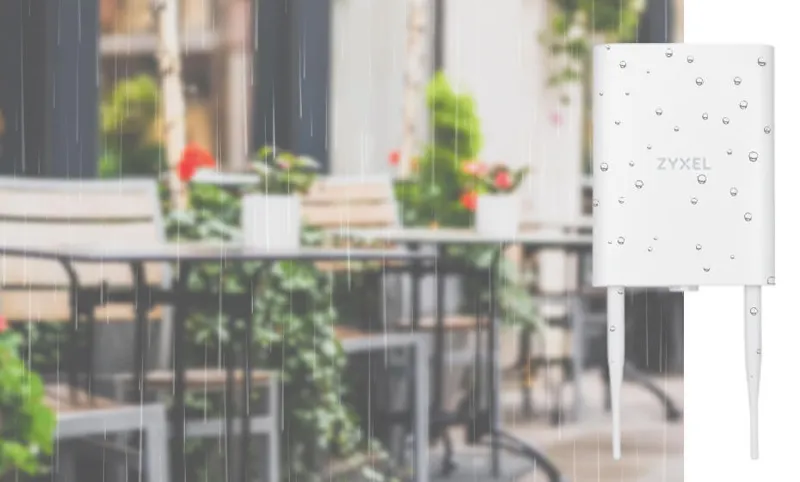

ZyXEL NWA55AXE: OpenWrt Compatibility Report
The ZyXEL NWA55AXE runs OpenWrt 25.12.4 on the ramips/mt7621 target, and has been supported since 22.03.2. Its WiFi 6 (AX) wireless on the mt76 driver rates good for open-source driver support (0.80/1.0), installation is rated easy, and it is still sold new.
Hardware data and retail listings last checked .
Where to buy
Some links are affiliate links. Learn more.
Specifications
| SoC | MediaTek MT7621AT |
|---|---|
| CPU | 2 cores @ 880 MHz |
| RAM | 256 MB |
| Flash | 128 MB (NAND) |
| Ethernet ports | 1 |
| WiFi generation | WiFi 6 (AX) |
| Radios | 2.4GHz: b/g/n/ax · 5GHz: a/n/ac/ax |
| WLAN hardware | MediaTek MT7915 |
| WLAN driver | mt76 |
| OpenWrt target | ramips / mt7621 |
| Package architecture | mipsel_24kc |
| Current release | 25.12.4 |
| Supported since | 22.03.2 |
| Install method | GUI OEM, U-Boot TFTP + serial recovery, see devicepage, see git-commit |
| Install difficulty | easy |
| Power supply | 802.3at PoE |
| Device type | Access point |
| Estimated throughput | 220 Mbps |
| Availability | available |
Installing OpenWrt on the NWA55AXE
Installation on this device is rated easy. You can flash it from the stock web interface without opening the case or using a serial cable. Documented methods: GUI OEM, U-Boot TFTP + serial recovery, see devicepage, see git-commit.
Official OpenWrt device page for the NWA55AXE
Flashing third-party firmware can brick a router and usually voids the warranty. Always check that the firmware image matches your exact hardware version.
