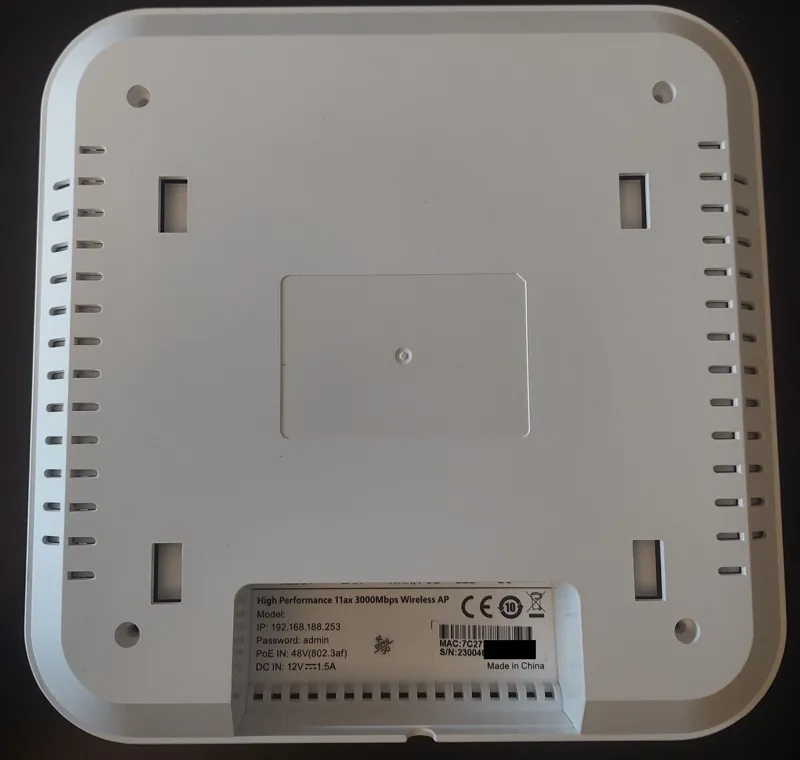

YunCore AX835: OpenWrt Compatibility Report
The YunCore AX835 runs OpenWrt 25.12.5 on the mediatek/filogic target, and has been supported since 23.05.2. Its WiFi 6 (AX) wireless on the mt76 driver rates excellent for open-source driver support (0.95/1.0), installation is rated easy, and it is still sold new.
Hardware data and retail listings last checked .
Where to buy
Some links are affiliate links. Learn more.
Specifications
| SoC | MediaTek MT7981B |
|---|---|
| CPU | 2 cores @ 1300 MHz |
| RAM | 256 MB |
| Flash | 16 MB |
| Ethernet ports | 2 |
| WiFi generation | WiFi 6 (AX) |
| Radios | 2.4GHz: b/g/n/ax · 5GHz: a/n/ac/ax |
| WLAN hardware | MediaTek MT7981B, MediaTek MT7976CN |
| WLAN driver | mt76 |
| OpenWrt target | mediatek / filogic |
| Package architecture | aarch64_cortex-a53 |
| Current release | 25.12.5 |
| Supported since | 23.05.2 |
| Install method | GUI OEM, U-Boot TFTP + serial recovery, see devicepage |
| Install difficulty | easy |
| Power supply | 12 VDC, 1.5A via barrel, or 802.3af PoE |
| Device type | Access point |
| Estimated throughput | 650 Mbps |
| Availability | available |
Installing OpenWrt on the AX835
Installation on this device is rated easy. You can flash it from the stock web interface without opening the case or using a serial cable. Documented methods: GUI OEM, U-Boot TFTP + serial recovery, see devicepage.
Rename sysupgrade image from *.bin to *.ubin before flashing via stock UI.
Official OpenWrt device page for the AX835
Flashing third-party firmware can brick a router and usually voids the warranty. Always check that the firmware image matches your exact hardware version.
