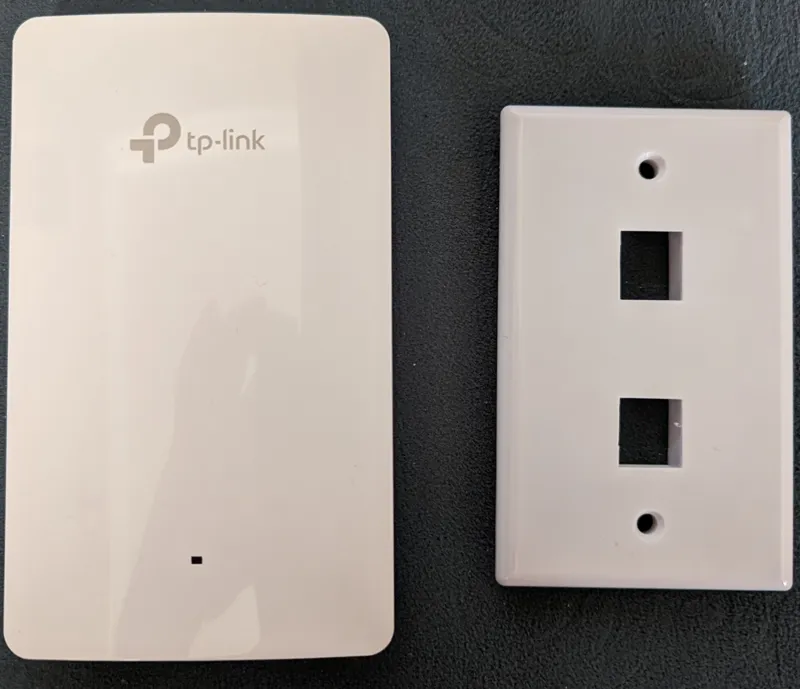

TP-Link EAP615-Wall: OpenWrt Compatibility Report
The TP-Link EAP615-Wall runs OpenWrt 25.12.2 on the ramips/mt7621 target, and has been supported since 22.03.0. Its WiFi 6 (AX) wireless on the mt76 driver rates good for open-source driver support (0.80/1.0), installation is rated moderate, and it is still sold new.
Hardware data and retail listings last checked .
Where to buy
Some links are affiliate links. Learn more.
Specifications
| SoC | MediaTek MT7621AT |
|---|---|
| CPU | 2 cores @ 880 MHz |
| RAM | 128 MB |
| Flash | 16 MB |
| Ethernet ports | 4 |
| WiFi generation | WiFi 6 (AX) |
| Radios | 2.4GHz: b/g/n/ax · 5GHz: a/n/ac/ax |
| WLAN hardware | MediaTek MT7905DAN, MediaTek MT7975DN |
| WLAN driver | mt76 |
| OpenWrt target | ramips / mt7621 |
| Package architecture | mipsel_24kc |
| Current release | 25.12.2 |
| Supported since | 22.03.0 |
| Install method | see git-commit |
| Install difficulty | moderate |
| Power supply | PoE 802.3at |
| Device type | Access point |
| Estimated throughput | 220 Mbps |
| Availability | available |
Installing OpenWrt on the EAP615-Wall
Installation on this device is rated moderate. Expect to use a recovery mode, TFTP or a vendor tool rather than a plain web upload. Documented methods: see git-commit.
rename image to shorter name, e.g. firmware.bin
Official OpenWrt device page for the EAP615-Wall
Flashing third-party firmware can brick a router and usually voids the warranty. Always check that the firmware image matches your exact hardware version.
