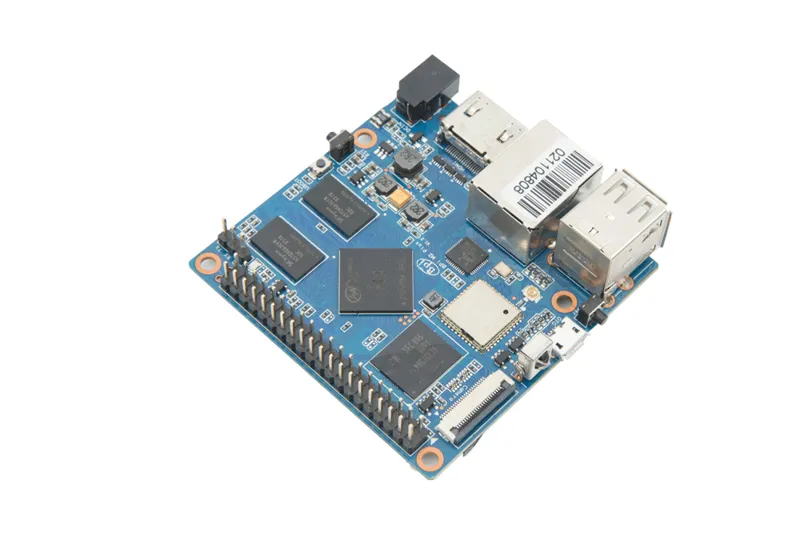

Sinovoip Banana Pi M2+: OpenWrt Compatibility Report
The Sinovoip Banana Pi M2+ runs OpenWrt 25.12.1 on the sunxi/cortexa7 target, and has been supported since 19.07.0. Its WiFi 4 (N) wireless on the brcmfmac driver rates fair for open-source driver support (0.50/1.0), installation is rated moderate, and we have no current US retail listing for it.
Hardware data and retail listings last checked .
Where to buy
We have no current retail listing for the Sinovoip Banana Pi M2+. See current alternatives for devices we already have links for.
Not finding a listing does not mean you cannot buy one. Our retail links come from hand research rather than a live stock feed, so this device may well still be on sale somewhere we have not checked yet.
Specifications
| SoC | Allwinner H3 |
|---|---|
| CPU | 4 cores @ 1000 MHz |
| RAM | 1024 MB |
| Flash | 8192 MB (NAND) |
| Ethernet ports | 1 |
| USB | 2x 2.0, 1x OTG |
| WiFi generation | WiFi 4 (N) |
| Radios | 2.4GHz: b/g/n |
| WLAN hardware | AMPAK AP6212A (Broadcom BCM43430) |
| WLAN driver | brcmfmac |
| OpenWrt target | sunxi / cortexa7 |
| Package architecture | arm_cortex-a7_neon-vfpv4 |
| Current release | 25.12.1 |
| Supported since | 19.07.0 |
| Install method | see devicepage |
| Install difficulty | moderate |
| Power supply | 5 VDC, 2.0A via barrel |
| Device type | Access point |
| Estimated throughput | 700 Mbps |
| Availability | available |
Installing OpenWrt on the Banana Pi M2+
Installation on this device is rated moderate. Expect to use a recovery mode, TFTP or a vendor tool rather than a plain web upload. Documented methods: see devicepage.
Official OpenWrt device page for the Banana Pi M2+
Flashing third-party firmware can brick a router and usually voids the warranty. Always check that the firmware image matches your exact hardware version.
