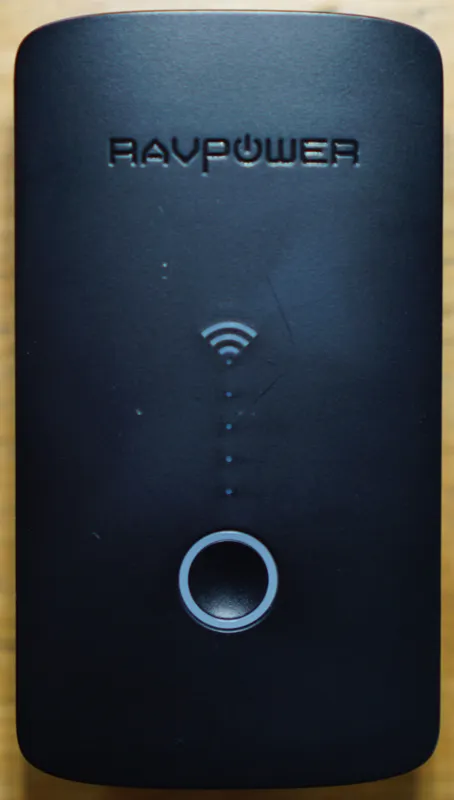

RavPower RP-WD03 (FileHub Plus): OpenWrt Compatibility Report
The RavPower RP-WD03 (FileHub Plus) runs OpenWrt 24.10.5 on the ramips/mt7620 target, and has been supported since 18.06.0. Its WiFi 4 (N) wireless on the mt76 driver rates fair for open-source driver support (0.50/1.0), installation is rated moderate, and it is no longer sold new. Its wireless does not work correctly under OpenWrt, so it is listed here for reference rather than as a recommendation.
Hardware data and retail listings last checked .
Where to buy
We have no current retail listing for the RavPower RP-WD03 (FileHub Plus), which is no longer sold new. See current alternatives for devices you can still buy today.
Specifications
| SoC | MediaTek MT7620N |
|---|---|
| CPU | 1 core @ 580 MHz |
| RAM | 32 MB |
| Flash | 8 MB |
| Ethernet ports | 1 |
| USB | 1x 2.0, 1x µUSB (power) |
| WiFi generation | WiFi 4 (N) |
| Radios | 2.4GHz: b/g/n |
| WLAN hardware | MediaTek MT7620N |
| WLAN driver | mt76 |
| OpenWrt target | ramips / mt7620 |
| Package architecture | mipsel_24kc |
| Current release | 24.10.5 |
| Supported since | 18.06.0 |
| Install method | TFTP generic, Sysupgrade, see git-commit |
| Install difficulty | moderate |
| Power supply | 5 VDC, 1.0A (µUSB), 6000 mAh battery |
| Device type | Travel router |
| Estimated throughput | 72 Mbps |
| Availability | discontinued |
Installing OpenWrt on the RP-WD03 (FileHub Plus)
Installation on this device is rated moderate. Expect to use a recovery mode, TFTP or a vendor tool rather than a plain web upload. Documented methods: TFTP generic, Sysupgrade, see git-commit.
Rename files to "kernel" and "rootfs" accordingly
Official OpenWrt device page for the RP-WD03 (FileHub Plus)
Flashing third-party firmware can brick a router and usually voids the warranty. Always check that the firmware image matches your exact hardware version.
