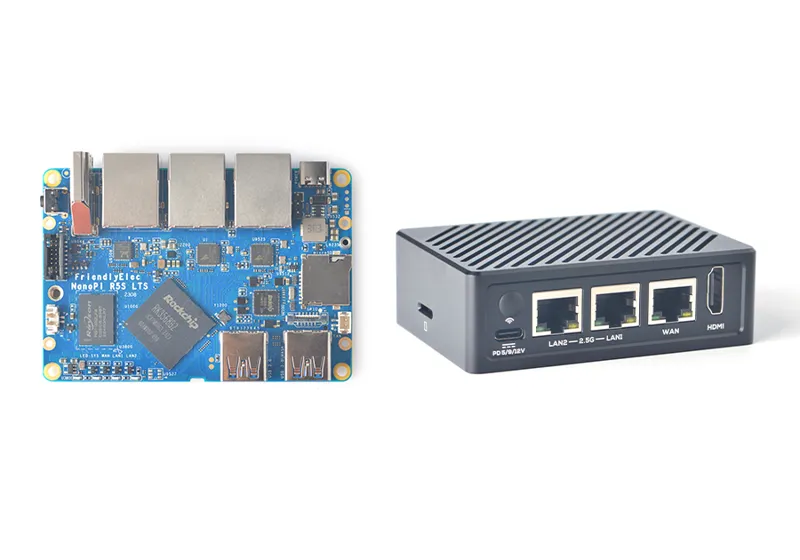

FriendlyARM NanoPi R5S: OpenWrt Compatibility Report
The FriendlyARM NanoPi R5S runs OpenWrt 25.12.5 on the rockchip/armv8 target, and has been supported since 24.10.0. Its No WiFi wireless on the none driver rates fair for open-source driver support (0.60/1.0), installation is rated moderate, and it is still sold new.
Hardware data and retail listings last checked .
Where to buy
Some links are affiliate links. Learn more.
Specifications
| SoC | Rockchip RK3568B2 |
|---|---|
| CPU | 4 cores @ 2000 MHz |
| RAM | 4096 MB |
| Ethernet ports | 3 (2.5G) |
| USB | 2x 3.0 |
| WiFi generation | No WiFi |
| WLAN driver | none |
| OpenWrt target | rockchip / armv8 |
| Package architecture | aarch64_generic |
| Current release | 25.12.5 |
| Supported since | 24.10.0 |
| Install method | SD card |
| Install difficulty | moderate |
| Power supply | 5 VDC, 3.0A via USB Type-C |
| Device type | Wired only |
| Estimated throughput | 2000 Mbps |
| Availability | available |
Installing OpenWrt on the NanoPi R5S
Installation on this device is rated moderate. Expect to use a recovery mode, TFTP or a vendor tool rather than a plain web upload. Documented methods: SD card.
Builds are available for ext4 and squashfs. Decompress then flash to an SD card.
Official OpenWrt device page for the NanoPi R5S
Flashing third-party firmware can brick a router and usually voids the warranty. Always check that the firmware image matches your exact hardware version.
