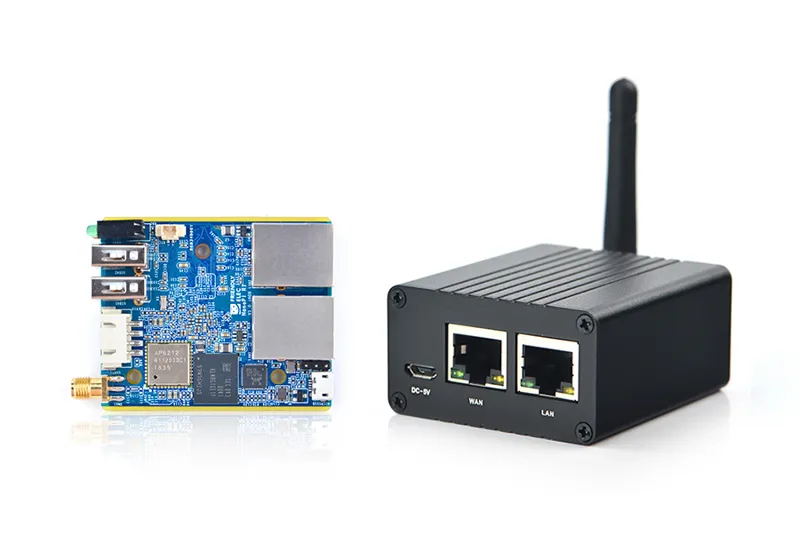

FriendlyARM NanoPi R1: OpenWrt Compatibility Report
The FriendlyARM NanoPi R1 runs OpenWrt 25.12.1 on the sunxi/cortexa7 target, and has been supported since 21.02.0. Its WiFi 4 (N) wireless on the brcmfmac driver rates fair for open-source driver support (0.50/1.0), installation is rated moderate, and it is still sold new.
Hardware data and retail listings last checked .
Where to buy
Some links are affiliate links. Learn more.
Specifications
| SoC | Allwinner H3 |
|---|---|
| CPU | 4 cores @ 1200 MHz |
| RAM | 1024 MB |
| Ethernet ports | 2 |
| USB | 2x 2.0, 1x OTG |
| WiFi generation | WiFi 4 (N) |
| Radios | 2.4GHz: b/g/n |
| WLAN hardware | AMPAK AP6212 (Broadcom BCM43430) |
| WLAN driver | brcmfmac |
| OpenWrt target | sunxi / cortexa7 |
| Package architecture | arm_cortex-a7_neon-vfpv4 |
| Current release | 25.12.1 |
| Supported since | 21.02.0 |
| Install method | SD card, Sunxi installation, see git-commit |
| Install difficulty | moderate |
| Power supply | 5 VDC, 2.0 A via USB Female Micro-B |
| Device type | Home router |
| Estimated throughput | 840 Mbps |
| Availability | available |
Installing OpenWrt on the NanoPi R1
Installation on this device is rated moderate. Expect to use a recovery mode, TFTP or a vendor tool rather than a plain web upload. Documented methods: SD card, Sunxi installation, see git-commit.
Flashing third-party firmware can brick a router and usually voids the warranty. Always check that the firmware image matches your exact hardware version.
